No backlight to overpower
The panel reflects ambient light instead of fighting it, so legibility rises with the sun rather than collapsing under it.
ApplicationsIndustrialRetailTransportationOEMBy conditionDirect sunlightBattery and solarExtreme temperatureBy technologyReflective LCDTransflective LCD
1 / 8Reflective LCD
Available to order

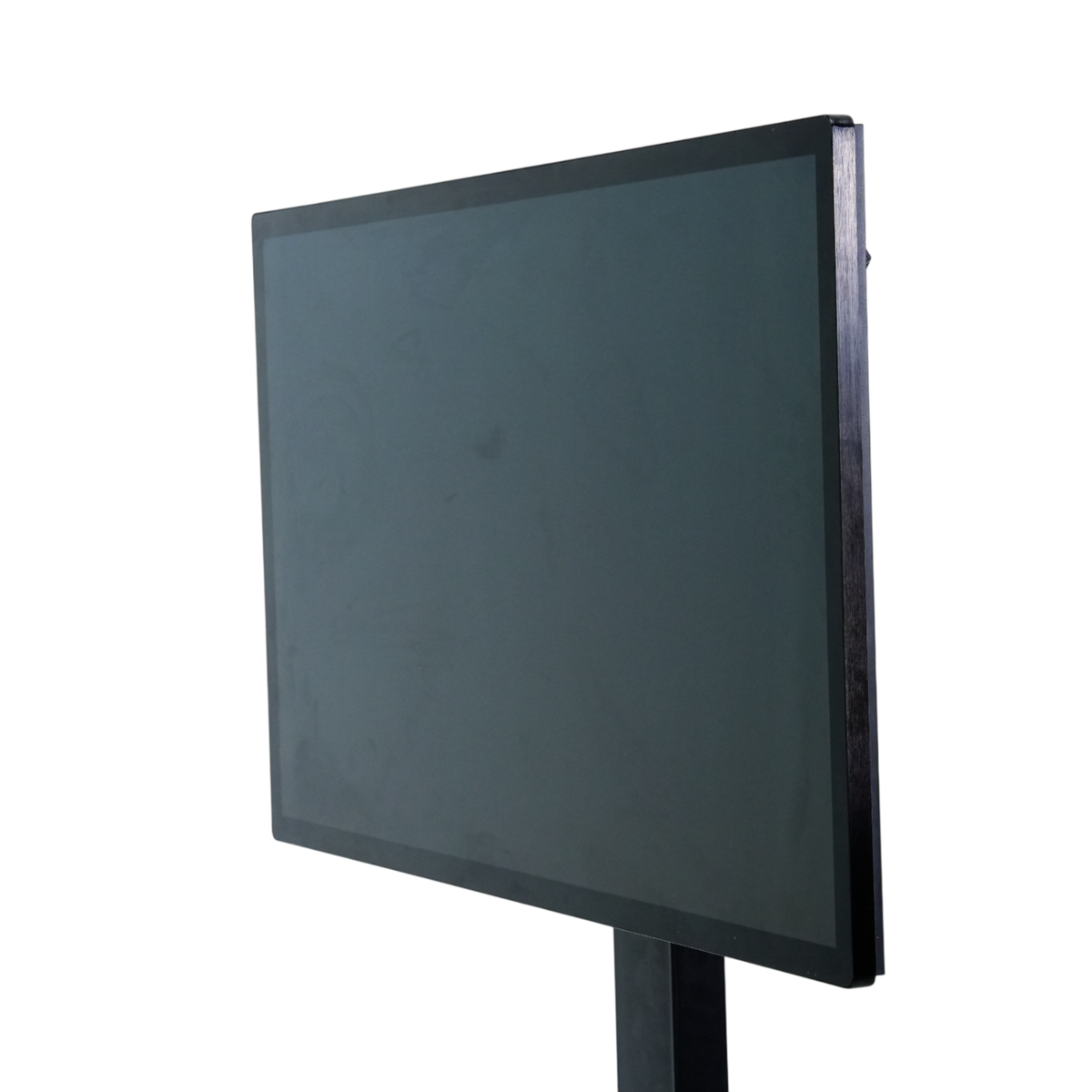

43-Inch RLCD Display

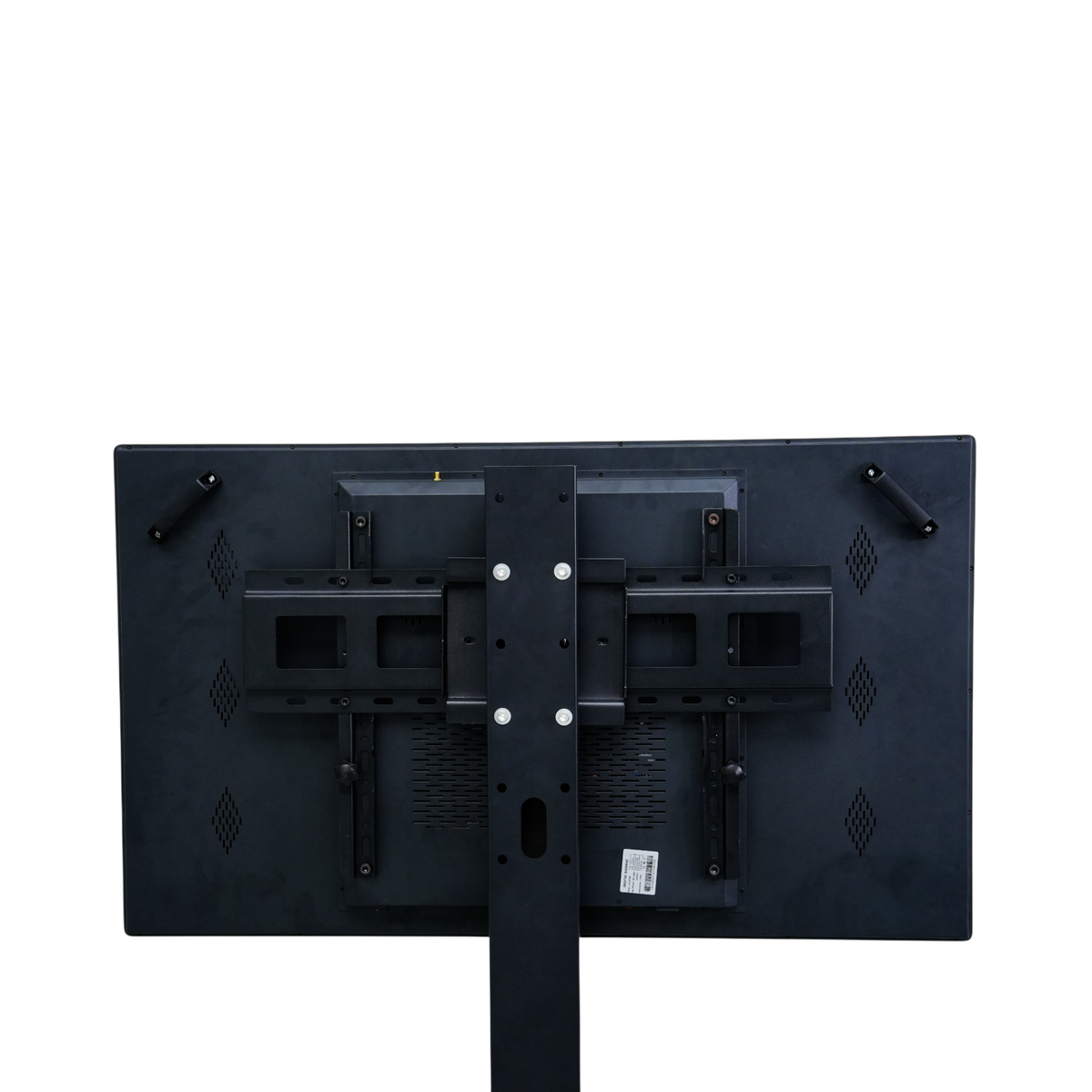

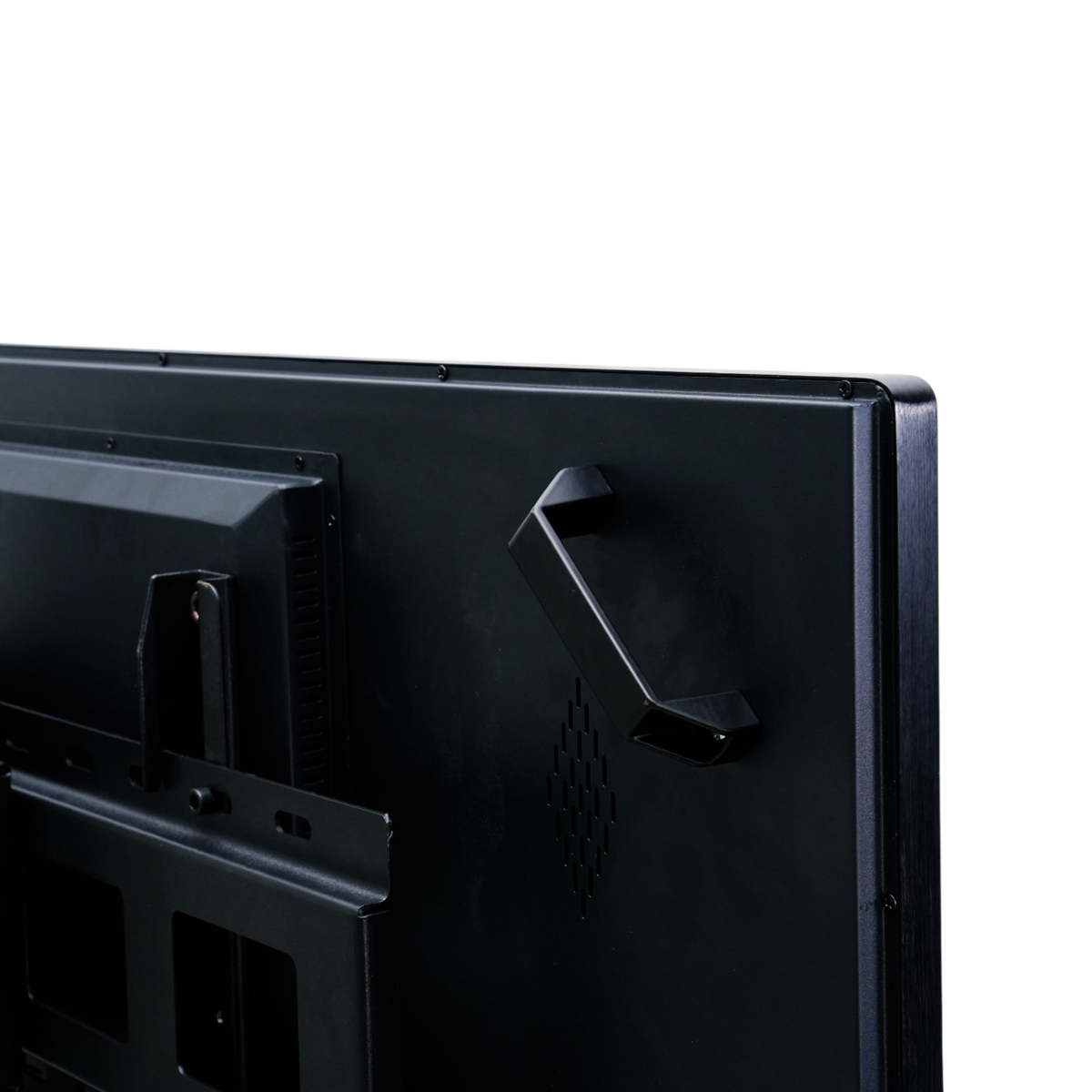

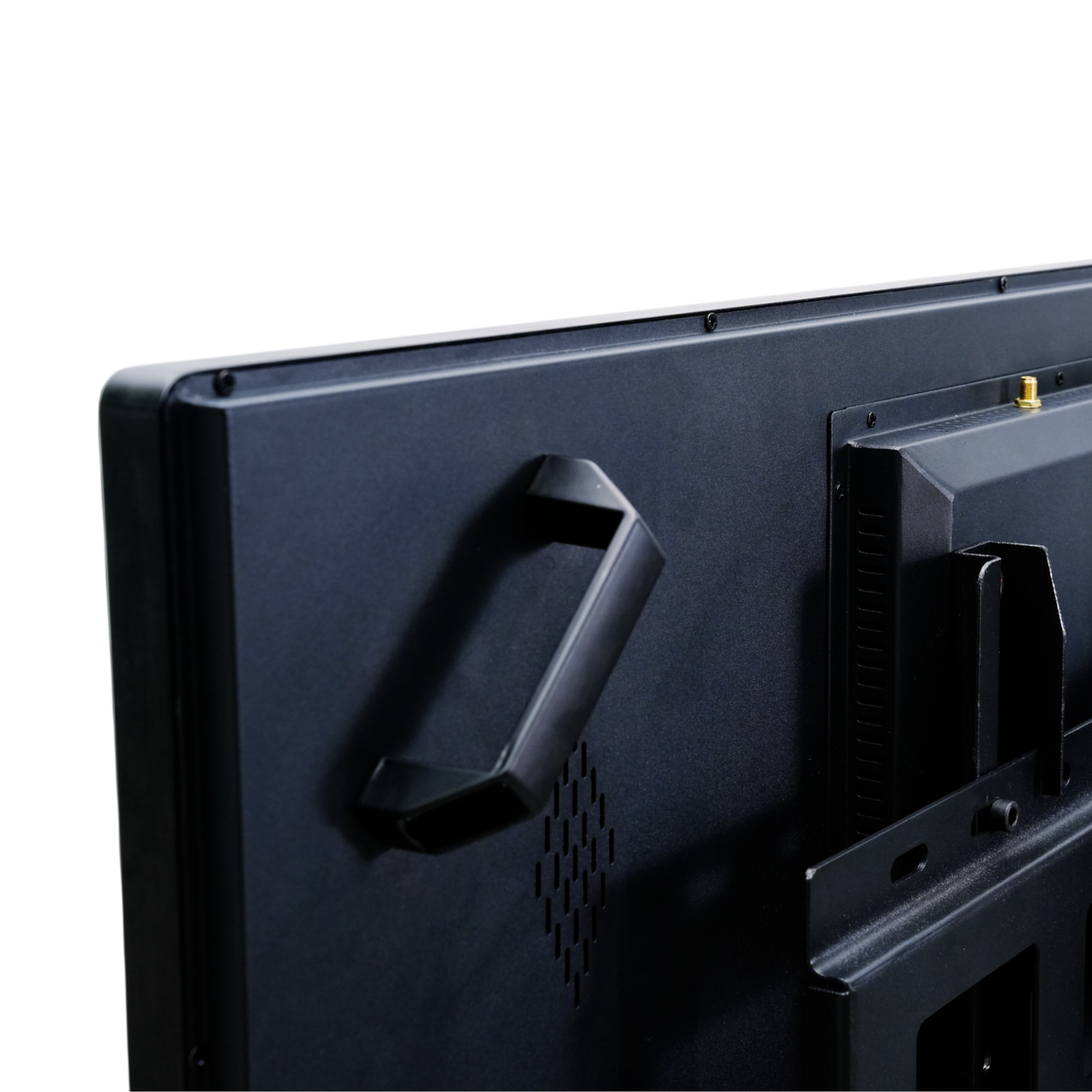

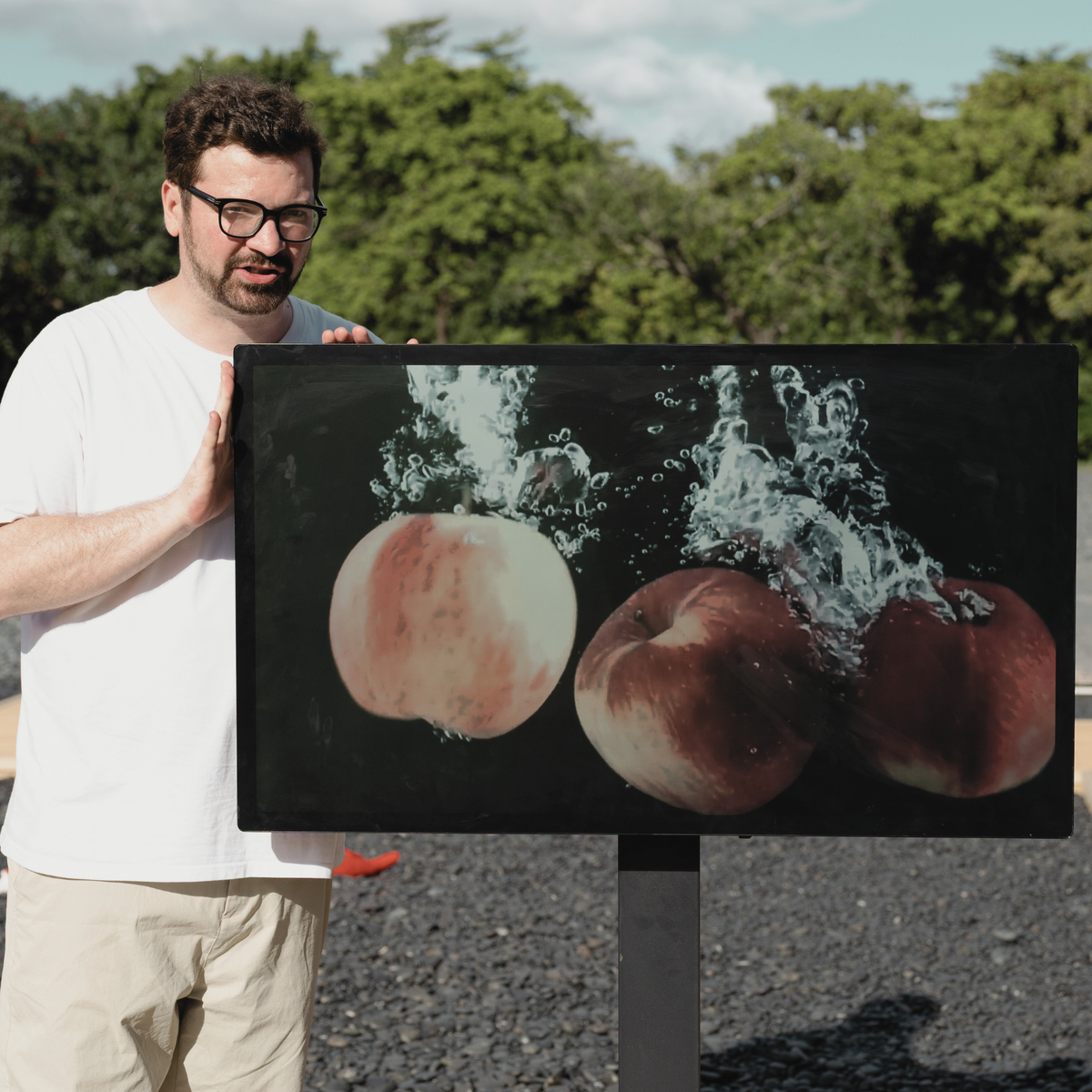

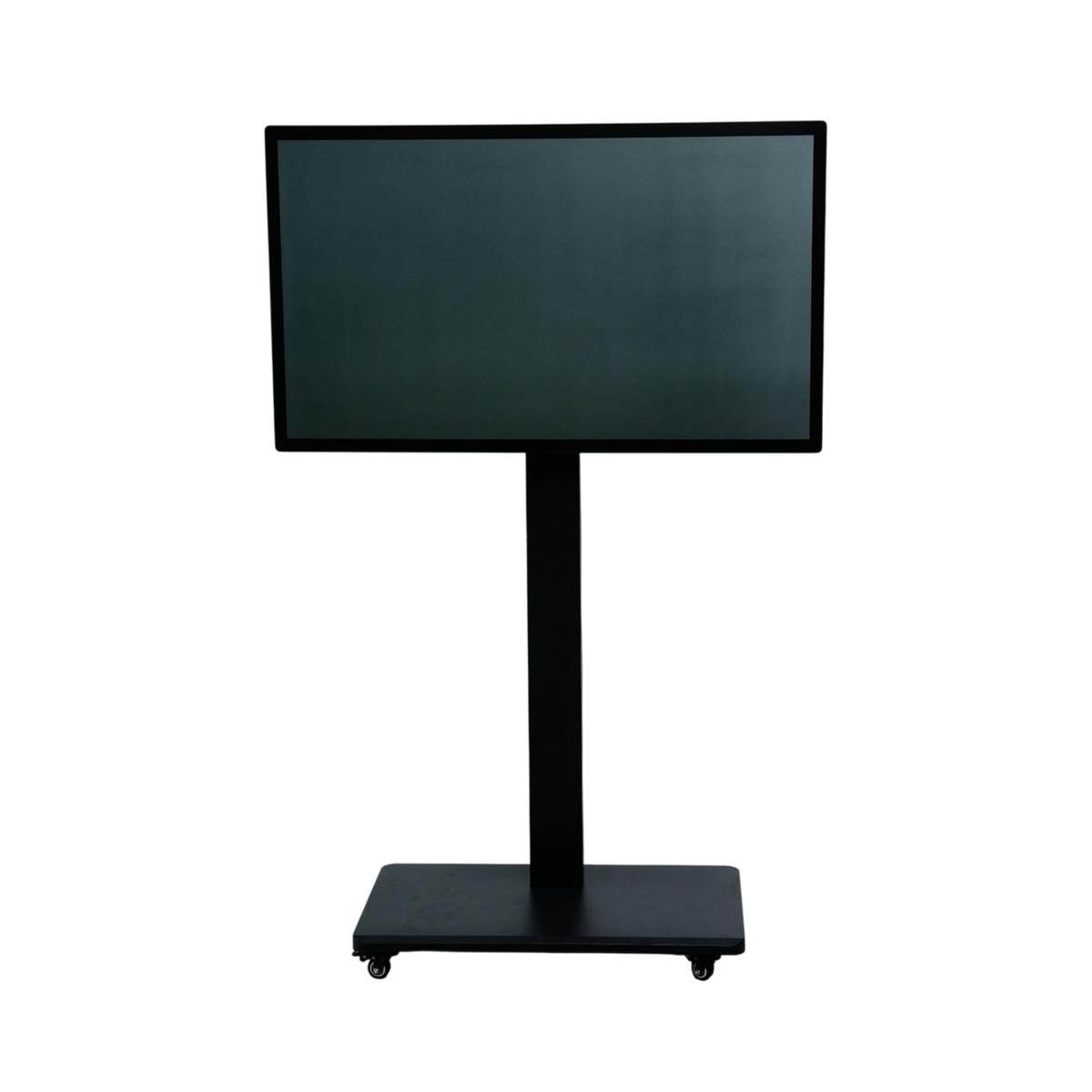

A 43-inch hanging RLCD display designed for digital signage, delivering clear portrait-format content with reliable 24/7 operation. The panel is a reflective LCD: there is no backlight, so the image is made from the ambient light in the space and gets easier to read as that light increases. In a shopfront window, an atrium or a covered outdoor area the display stays legible where a backlit panel washes out, and the panel itself draws milliwatts rather than watts because the load that dominates a conventional signage display is not there. A built-in Android media player drives the content over Wi-Fi, Ethernet, USB or Bluetooth, so the display works with a standard signage CMS without an external box. The rear carries a VESA mounting plate with carry handles; it ships for hanging installation, on the floor stand shown, or on the wall bracket supplied. Typical placements are retail windows, reception areas, showrooms and transport interiors where daylight is part of the environment and the power budget or the heat budget rules out a high-brightness backlit screen. Every published figure for this module is issued as a datasheet with the conditions it was measured under. How reflective LCD works.
$1,799
per unit, excl. tax · volume pricing on request
Diagonal
43 in
Technology
Reflective LCD
Form factor
Display
Every published figure carries the conditions it was measured under. Request the datasheet for this module.
Contrast that improves as the light gets harder
The power the backlight used to take
With no backlight in the stack, display draw falls to a fraction of a comparable transmissive panel — often the difference between mains and solar.
One fewer component to derate
The backlight is usually the first thing to fail in an unconditioned enclosure. Removing it removes both its lifetime curve and its share of the heat.
What we can confirm today
Display technology
Reflective LCD
Diagonal
43 in
Form factor
Display
Backlight
None — the panel is reflective
Connectivity
Wi-Fi · Ethernet · USB · Bluetooth
Duty
Rated for 24/7 operation
Form factor
Hanging or stand-mounted display
Media player
Built-in Android player
Mounting

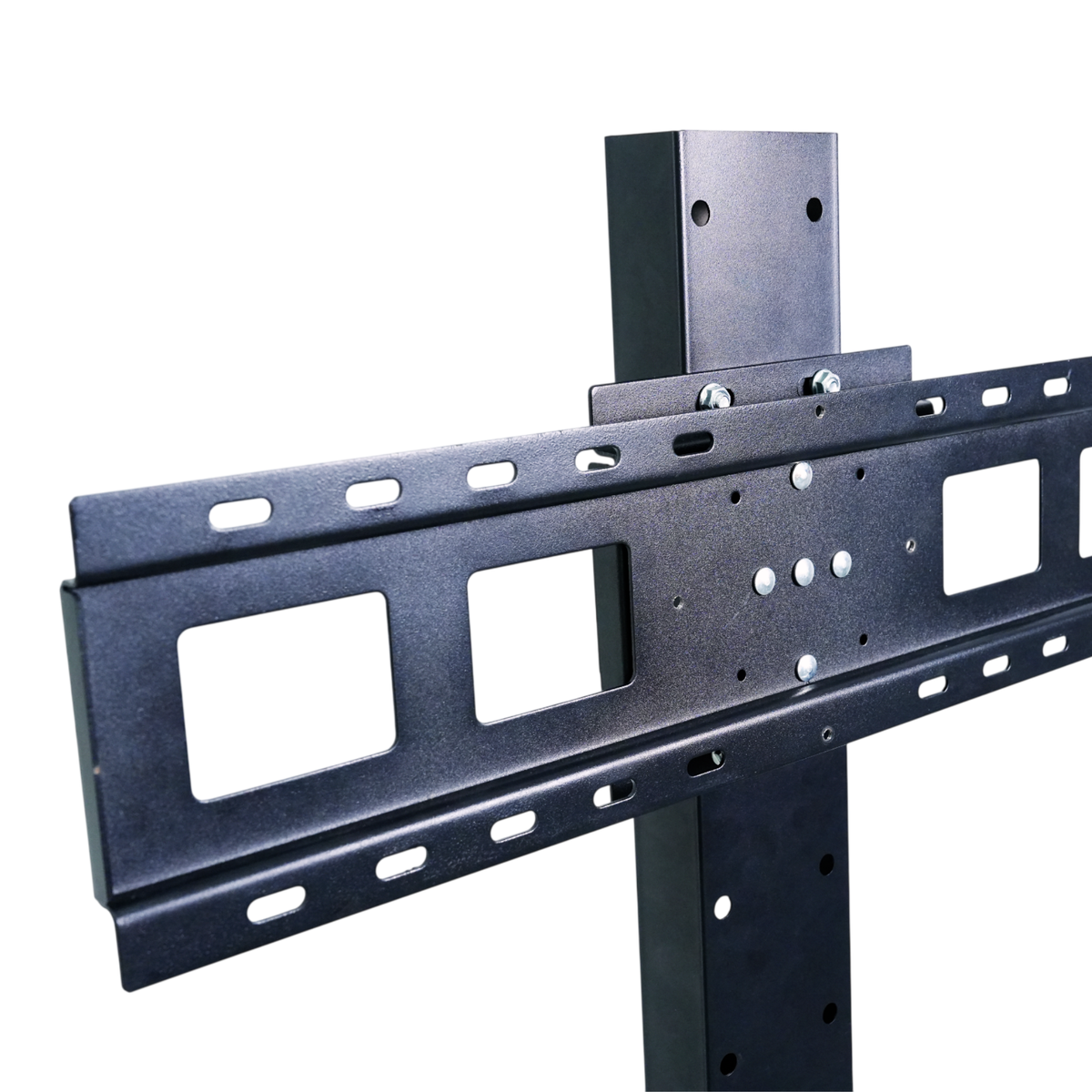

VESA plate · floor stand · wall bracket
Resolution
1920 x 1080 portrait
Availability
Available to order
Optical and electrical figures
Issued as a datasheet with the test conditions for each figure
Full optical and electrical specification on request
Measured reflectance, contrast, power draw and the temperature characterisation are issued as a datasheet against your application, with the test conditions for each figure. We do not publish figures without the conditions behind them.
Commercial terms
Lead time
From 3 weeks for catalogue modules, quoted per order by quantity and destination. Finished kiosks and bonded assemblies add the enclosure build or the bonding cycle.
Samples
Confirmed within 12 hours. Sample charges depend on the module and the project and are stated before anything ships.
Warranty
One year against factory faults from the date of dispatch. Application-related damage, such as an unbonded panel run outside its stated ambient range, is not covered.
Typical figures
Reflective LCD class figures, not this module's rating: white-state reflectance 10 to 20 % (D65, 8° / diffuse geometry), contrast ratio 15:1 to 30:1 measured at 10,000 lux, video-rate refresh, operating range −30 °C to +85 °C. The measured values for this module are issued on the datasheet with their test conditions.
An application engineer reviews the fit first
01
You tell us the enclosure, the ambient range and the power available.
02
We confirm this module is the right one, or name a better fit in the range.
03
Samples ship with the datasheet and the conditions behind every figure quoted.
Also in the range
Engineered to order
Need a diagonal that is not in the range?
Panels outside the published range are built to your enclosure, interface and power budget. Send the enclosure drawing and an application engineer replies with a specified module.
Want this panel on your bench?
Tell us what it is going into. An application engineer confirms the fit, sends the datasheet with its test conditions and ships a sample if the module fits.
